SW22 Capacity 2,200 lbs.
Walkie Stacker
Single Stage Mast or
Telescopic Mast
with Adjustable Straddle Legs
Electric Walkie Pallet Truck
Walkie Stackers

Contact Us Today! Toll Free 1-877-775-2211 or e-mail us at sales@seiequipment.com

Overview
Standard Features:
The SW22 offers as standard equipment: adjustable straddle legs, free lift masts, deep cycle battery pack with built-in charger, battery discharge indicator and key lock.

Controls Ergonomics:
The controls of the SW22 are designed for intuitive operation through an articulated and swiveling handle. The controls are grouped together on the upper part of the handle, and include:
- selection of 3 speeds forward and reverse, through two butterfly controls.
- lifting of forks through push buttons, lowering through separate lever.

Drive Motor:
Powerful, reliable electric 0.6 kw motor with high overload capacity and remarkable efficiency.

Speed selection:
Three Speed Forward and reverse magnetic resistant controls.

Brake:
Adjustable electromagnetic disc brake provides reliable stopping with all loads. Braking is automatic in the vertical and horizontal position of the handle while the electric circuit on traction is isolated.

Steering:
Pedestrian operated steering handle. Handle can be swiveled through 90 degrees to either side and complies with safety regulations.

Drive Wheel:
Easily replaceable polyurethane tire, dia. 7.9".

Load Wheels:
Single polyurethane load wheels, 4" dia., 2" wide.

Mast:
The SW22 is available with a single mast of 62" lift or with telescopic masts of 112" or 128". Telescopic masts have Free Lift of 7" for easy access through doors or on trailers. The inner profiles of the mast and fork carriage are fitted with roller bearings.

Lifting and lowering:
Hydraulically through high pressure pump with 1.8 kw powerful motor.

Straddle legs:
Truck comes standard with oversized, adjustable straddle legs.

Batteries / Charger:
Deep cycle batteries 2 x 12 V - 100 Ah with built-in charger.

Safety:
The SW series has been engineered under modern safety aspects with such items as:
- "deadman" braking system, which is activated upon release of the handle
-safety reversing "belly button" switch on the handle, thus reducing the chances of injury
-rubber skirt to protect the driver's feet
-"high visibility" masts for better view on the load and forks
The ruggedly constructed drive train and hydraulic system allow transport of loads safely and easily.

Maintenance:
All electric and hydraulic components are easily accessible. Control fuses are immediately accessible and protected under the upper bonnet. All Multiton spare parts are available within a remarkable short delivery time.

Quality:
Multiton straddle stackers are designed to last for years of trouble free operation. MIG welded steel sheet frame. The robust forged forks are adjustable on the wide fork carriage. Thick steel sheet bumpers wrap around the drive unit. Every truck goes through a detailed quality inspection before being shipped.

Accessories:
- 48" Load Backrest
- Load Centering Device
- Tandem Load Roller
- Snap-On Platform

Features

Modular Design Concept
The model SW22 uses a modular concept design where the parts in the drive unit, handle and various other aspects of the truck are interchangeable with other pieces of our equipment. The SW22 is available with a single mast of 62" lift or with telescopic masts of 112" or 128". Telescopic masts have Free Lift of 7" for easy access through doors or on trailers. The inner profiles of the mast and fork carriage are fitted with roller bearings.

Easy to Operate Controls
The controls are grouped together in the steering handle head. Forward and reverse speeds are operated by two butterfly levers located on each side of the handle head. Lifting of forks is actuated by a push button; lowering through a separate lever on the chassis. This movement is infinitely variable.

The truck comes with standard adjustable straddle legs with a minimum ID. of 37" and a maximum ID. of 51".

Standard Specifications
  • Capacity 2,200 lbs.
  • Load Center 24"
  • Overall Length 69.7"
  • Overall Distance Between Adjustable Straddle Legs 37" to 51"
  • Fork Length 42" ( Straddle only ) or Optional 30" 36", 48"
  • Turning Radius 58"
  • ITA Class 2 Carriage Adjustable Forks 12 " min. to 24" max.
  • Thickness of Forks 1.25"
  • Fork Width 4"
  • 8" Polyurethane Steering Wheels
  • 6 months warranty on parts, hydraulic unit and frame
  • 2 x 12 volt 100 AH battery with automatic battery charger

Options
  • Other options: Various batt/chargers, battery discharge indicator (gauge type) w/hourmeter, load guards 48" & 68"
  • Fork Lengths: 36" 42",54", 60"
  • Fork Width: 20.8" ( incl. Stability Casters )
Pricing(Straddle & Fork Over)
Model #
Description
Price(USD)
SW 22 Lifting Height 62" Non Telescopic
$5,574.00
  Lifting Height 112" Telescopic (Free Lift 7")
$6,341.00
Lifting Height 128" Telescopic (Free Lift 7")
$6,971.00
Options
Description
Add:
Maint. Free Battery Pack in Lieu of Standard
$204.00
130 AH, 24V Ind. Battery & Charger in Lieu of Battery Pack
$1,174.80
Truck without Battery or Charger
-$322.00
Remote Control
$593.00
Load Backrest 48" High
$130.00
Tandem Loadroller (Straddle only)
$150.00
Fork Length 48" (Straddle Only)
$78.00
Fork Length 30 - 36" (Straddle Only)
$52.00
Snap on Platform (Straddle Only)
$95.00

PERFORMANCE
Travel Speed:
Without load
3.7 mph - 5.9 km/h
With load
2.9 mph - 4.7 km/h
Lift Speed:
Without load
19 ft/min - 0.09 m/s
With load
13 ft/min - 0.07 m/s
Lowering Speed:
Without load
50 ft/min - 0.25 m/s
(up to)
With load
80 ft/min - 0.41 m/s
Gradient Performance:
Without load
10%
With load
5%
Truck Weight:
62"
1,445 lbs. - 655 kg
(with battery pack)
114"
1,622 lbs. - 736 kg

130"
1,798 lbs. - 816 kg
Battery compartment size:
23 3/4"L x 8 5/8"W x 19"H
STANDARD MASTS
Single Mast
h1 h3 h4
79"/2,000 mm 62"/1,575 mm 82"/2,100 mm
Telescopic Mast
h1 h3 h4
79"/2,000 mm 114"/2,900 mm 133"/3,400 mm
85"/2,200 mm 130"/3,255 mm 147"/3,700 mm

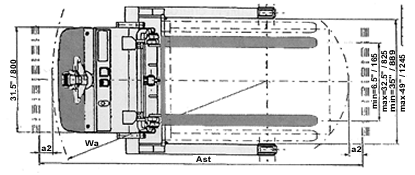

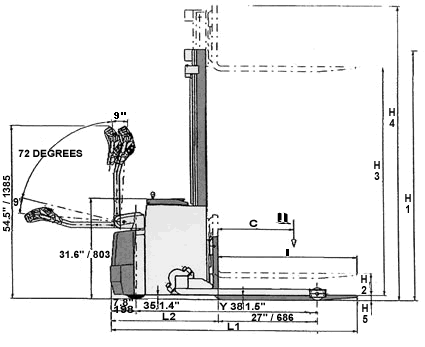

TECHNICAL CHARACTERISTICS
Q - capacity 2,200 lbs/1,000 kg
c - load center 24"/600 mm
y - wheel base 49.5"/1,260 mm
  - overall width 43"-57"/1,092 mm-
1,448 mm
L2 - length of drive unit 30"/760 mm
L - overall length 74"/1,880 mm
  - fork width 4"/100 mm
  - min/max distance between adjustable straddle legs 35"/49" - 889/
1,245 mm
h - height of straddle legs 3.375"/86 mm
  - thickness of forks 1.25"/32 mm
Wa - turning radius 64"/1,620 mm
Ast - aisle turning dimension 96"/2,440 mm
a2 - safety clearance 8"/200 mm
h1 - overall height see table
h2 - lift height see table
h4 - extended mast height see table
h2 - free lift 7"/175 mm
1 - standard fork length 42"/1,070 mm
  - outside dimension of fork 8" - 33.31"/205 mm - 845 mm
  - thickness of straddle 3"/76 mm
AISLE TURNING DIMENSIONS
Load Length
Load Width

30
36
40
42
48
30
88
89
90
90
95
36
88
89
90
90
95
40
88
89
90
90
95
42
88
89
90
90
95
48
90
91
92
93
95
Add 8" for ease of operation.
