Location: SEI Equipment> Electric Pallet Trucks>EME 30
EME30 Capacity 3,000 lbs.
ELECTRIC PALLET TRUCK
with ELECTRIC LIFT
Electric Walkie Pallet Truck
Walkie Stackers

Contact Us Today! Toll Free 1-877-775-2211 or e-mail us at sales@seiequipment.com

Features
  • Fully Powered Drive, Lift and Crawl Speed features add to ease of use.
  • AC Direct Drive Motor provides more efficient use of electricity and longer battery life.
  • Compact design (61” overall length) and lightweight (400 lbs.) make for easy storage when not in use
Standard Specifications
  • Capacity: 3,000 lb.
  • Fork Length: 46.4”
  • Width Over Forks: 25.6”
  • Maintenance free Batteries: 2 x 12v/ 42 AH
  • Load Center: 24”
  • Charger Included
  • Electronic Speed Controller
  • Crawl Speed with Handle in Upright Position
  • Maintenance free AC Drive Motor
  • Travel Speed w/ load: 2 m.p.h.
  • Travel Speed w/o load: 3.4 m.p.h.
  • Gradient Performance w/load: 3.5%
  • Weight 400 lbs.
  • Lift Height 7”
  • Lowered Height 3.2”
  • Fork Height 2”
  • Fork Length 46.4”
  • Wheel Base 47.95
  • Overall Length 61.22”
  • Drive Unit Length 14.8”
  • Fork Width 5.91”
  • Turning Radius 56.10”
Pricing
Model #
Description
Capacity
Price(USD)
EME30 Electric Pallet Truck with Electric Lift
3000 lbs
$2,755.00
Options
Description
Add:
Width over Forks 20.5"
$141.00
Fork Length 31.1"
$167.00
Fork Length 38.6"
$141.00
Tandem Loadroller Polyurethane
$99.00
Quartz Drive Tire
$172.00
Load Guard 48"
$154.00
Load Guard 68"
$170.00
Skid Adapter
$218.00

PERFORMANCE
Capacity

3,000 lbs
Travel speed
without load
3.1 mph
with rated load
2.6 mph
Lifting speed
without load
5.9 ft/min
with rated load
3.9 ft/min
Max. gradient performance
without load
15%
with rated load
3.5%
Service weight with 42 Ah battery
364 lbs

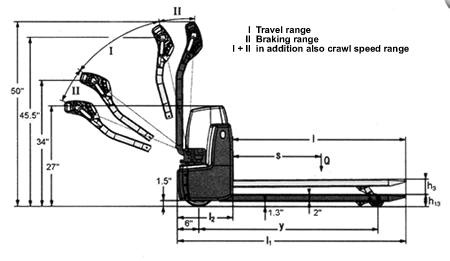

TECHNICAL CHARACTERISTICS
Q -Capacity 3,000 lbs
s -Load center 24.0"
y -Wheelbase 48.0"
b1 -Overall width 27.6"
l2 -Drive unit length 14.9"
l1 -Truck length 61.2"
b5 -Width across forks 20.5/25.6"
e -Fork width 5.9"
b11 -Track width load section 14.6/19.7"
h13 -Lowered height at tip of forks 2.95"
h3 -Lift 3.74"
Wa -Turning radius 56.1"
a -Safety clearance 8.0"
l -Standard fork length 46.3"

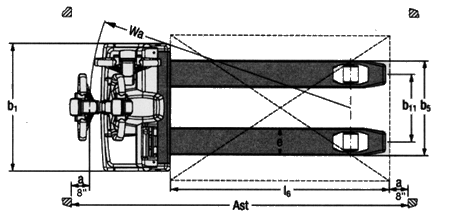

WORKING AISLE WIDTHS (INCH)
Pallet size
Position
Ast incl. 8.0" safety clearance
32.0 x 48.0
Lengthways
72.4
40.0 x 48.0
Sideways
64.6
* Note: Operating this unit while skid adaptor is in upright position will decrease the fork length and interference
between the load roller and pallet may occur.
