EJB35 Capacity 3,500 lbs.
Walkie Straddle Stacker
Heavy Duty

Electric Walkie Pallet Truck
Walkie Stackers

Contact Us Today! Toll Free 1-877-775-2211 or e-mail us at sales@seiequipment.com

Overview
Safety:
The EJB stacker has been engineered under modern safety aspects which are offering very good serviceability and a maximum performance of safety for the operator:
-multifunctional handle which makes it unnecessary to remove hands from handle while operating truck
-emergency stop button within easy reach
-"deadman" braking system, which is activated upon release of the handle
-reversing "belly button" safety switch on the handle, thus reducing the chances of injury
-enclosed type of bumper which protects the operator's feet

Controls:
All control buttons are located in the upper part of the long multifunctional handle and include:
- two butterfly controls for finite control of travel speeds
-push buttons for lifting and lowering of forks with sensing control
-crawl speed button that will allow truck to move even with handle in an upright position

Drive Motor:
Powerful 1.5 kW separately excited motor with high overload capacity and remarkable efficiency.

Mast:
The mast fabrication is of cold drawn steel giving great rigidity. Good visibility of load and forks is permitted because of laterally mounted lifting cylinders (full visibility telescopic mast).

Drive wheel:
9" diameter, 2.75" wide, Polyurethane.

Load wheels:
3.35" diameter, 4.33" wide, Polyurethane.

Steering:
Pedestrian operated steering handle can easily be swiveled through 90 to either side. Eccentric mounted handle ensures good sight in moving direction even if load is picked up.

Brake:
Electromagnetic disc brake connected to drive shaft. When butterfly control is in zero-position, the battery will be recharged while truck slows down. Automatic rollback protection on gradients.

Construction:
Rugged built steel frame provides high remaining lift capacities and stability. Truck comes standard with adjustable straddle legs.

Lifting and Lowering:
Infinitely variable speeds through push buttons in handle. High pressure pump driven by powerful 3.0 kW series-wound motor.

Maintenance:
All electric and hydraulic components are easily accessible. Control fuses are immediately accessible under a one-piece-hood. All MULTITON spare parts are available within a remarkably short delivery time.

Batteries:
24 V industrial batteries with 195 Ah, 225Ah, 255 Ah or up to 340 Ah. Call for specifications.


Standard Specifications
  • Capacity 2,500 lbs.
  • Load Center 24"
  • Overall Length 80"
  • Fork Length 42"
  • Adjustable Straddle
  • Thickness of Forks 2.5"
  • Fork Width 4"
  • 9" Steering Wheels polyurethane
  • 6 months warranty on parts, hydraulic unit and frame
  • 24 Volt System
  • 195 AH, 24 Volt Industrial Battery
  • 24V Charger, 1 Phase 120V, 13.9A
Pricing(Straddle & Forkover Models)
Model #
Description
Capacity
Price(USD)
EJB35 Lifting Height 110" (4" Free Lift)
3500 lbs
$9,888.00
  Lifting Height 137" (4" Free Lift)
3500 lbs
$10,027.00
  Lifting Height 137" (67" Free Lift)
3500 lbs
$11,253.00
  Lifting Height 157" (4" Free Lift)
3500 lbs
$10,176.00
  Lifting Height 185" (Ttriple Stage Mast 53" Free Lift)
3500 lbs
$12,293.00
  Lifting Height 206" (Ttriple Stage Mast 68" Free Lift)
3500 lbs
$12,437.00
Options
Description
Add:
195 AH 24 Volt Industrial Battery
$1,521.00
255 AH 24 Volt Industrial Battery
$1,673.00
340 AH 24 Volt Industrial Battery
$1,940.00
Maint. Free Battery Pack 250 AH (110" and 137" Masts only)
$1,853.00
24V Charger, 120 Volt Single Phase, 13.9A, 40A DC Output
$540.00
24V Charger, 120 Volt Single Phase, 17.5A, 50A DC Output
$1,048.00
24V Charger, 208/240 Volt Single Phase, 12.1/10.4A, 60A DC Output
$1,048.00
Battery Discharge Indicator with lift interrupt/Hourmeter
$397.00
Fork Length 48" (Straddle Only)
$93.00
Fork Length 30-36" (Straddle Only)
$67.00
Snap on Platform (40x42 Straddle Only)
$160.00
Steering Wheel: Quartz (Sanded) in Lieu of Standard
$220.00
Load Backrest 48"
$173.00

PERFORMANCE

Without load
Withload
Maximum travel speed (mph/km/h)
3.75 / 6.0
3.75 / 6.0
Gradient performance
16%
7%
Lift speed (ft / min / m/s)
45 / 0.26
28 / 0.14
TRUCK WEIGHT (WITHOUT BATTERY)
[LBS / KG]
Lifting height h3
110"
137"
157"
165"
206"
*See Below
2117/
962
2197/
999
2267/
1030
2434/
1106
2583/
1175
* Truck requires minimum battery weight of
440 lbs / 200 kg for safe operation.
Battery compartment size:
                 28.31"L x 11.2"W x 26.9"H
                 720mm L x 285mm W x 685mm H
STANDARD MASTS
Telescopic Masts
h1
h2
h3
h4
77"/1950 mm
4"/100 mm
110"/2800 mm
131"/3331 mm
91"/2300 mm
4"/100 mm
137"/3500 mm
159"/4031 mm
101"/2550 mm
4"/100 mm
157"/4000 mm
179"/4531 mm
89"/2250 mm
67"/1719 mm
137"/3500 mm
159"/4031 mm
*75"/1900 mm
54"/1369 mm
165"/4200 mm
186"/4731 mm
*89"/2250 mm
67"/1719 mm
206"/5250 mm
228"/5781 mm

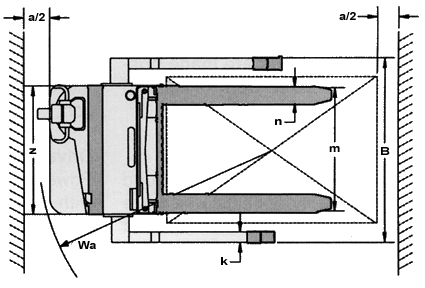

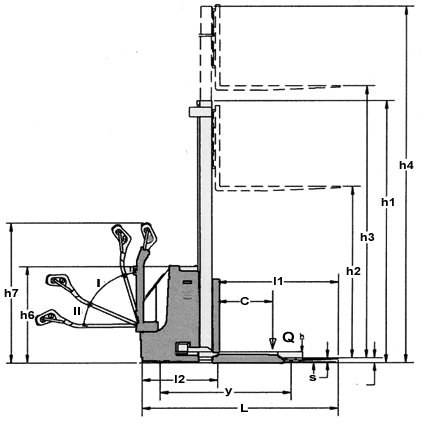

TECHNICAL CHARACTERISTICS
Q
- capacity
EJB 25
2500 lbs./1133 kg
EJB 35
3500 lbs./1586 kg
c
- load center
24"/600 mm
y
- wheel base
55.5"/1410 mm
B
- overall width
44.25" to 57"
L
- overall length
80.75"/2051 mm
l1
- standard fork length
42"/1066 mm
l2
- extension length
35.75"/908 mm
m
- width across forks
from 8.5" to 30"/from 216 mm to 762 mm
n
- fork width
4"/100 mm
s
- thickness of forks
1.625"/42 mm
Wa
- turning radius
63"/1600 mm
a
- safety clearance
8"/203 mm
k
- straddle leg width
4.25"/108 mm
z
- extension width
31.5"/800 mm
h6
- extension height
35"/889 mm
h7
- upright handle height
51.5"/1308 mm
h8
- lowered fork height
2.5"/63 mm
h1
- overall height
see table
h2
- free lift
see table
h3
- lift height
see table
h4
- extended mast height
see table
h
- height of straddle leg
3.2"/80 mm
* = 3 stage-mast
AISLE TURNING DIMENSIONS AST (INCHES)
Load Length
Load Width

30
36
40
42
48
30
80
83
85
86
89
36
80
83
85
86
89
40
80
83
85
86
89
42
80
83
85
86
89
48
81
84
86
87
90
Add 8" for ease of operation
