Product
Catalog |
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
Filling
Equipment Catalog |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
AUTOMATIC FILLING MACHINES
PG54-T-A
Operator
Friendly Design
- Accurate, durable, easy, fast,
net weight filler
- Safe operation through solid design
- Easy Reach Controls
- Allen Bradley HMI and PLC
- Intrinsic and Non-Intrinsic design.
(Class1, Division 1, Group C&D
- Clean, “No Collect” design.
- Low Cost
Multiple
Container Capabilities
 Six-Gallon
|
One-Gallon |
Five-Gallon |
Quarts |
Configurable
to your container type |
Flexible
Design
- 4 Heads. A-B Lane Filling.
- Different Head Styles Available
- High-Speed Automatic lid Crimper
or press available
- Lid Placers Available
- Independent Lane Control
- Automated Statistics Reporting
Package available
|
Specifications
| Containers per Minute |
20 cpm |
| Model Number |
PG54-T-A |
| Controls Operating Voltage |
110 VAC |
| Pneumatic |
Min 80 PSI, Max 120 PSI |
| Main Voltage |
240/480 V AC |
| Supply line size |
3/4” |
| System Width |
180" |
| System Depth |
98.5" |
|
Highlights
- ACCURATE NET WEIGHT FILLING.
- SIMPLE DESIGN
- INDIVIDUAL WEIGHT SCALES
FOR ACCURATE FILLING.
- EASY OPERATION AND CONTROLS.
|
- CLOSED TUBE FRAME DESIGN-NO
PRODUCT CATCH POINTS.
- TOPFILL, SUB-FILL, AND BOTTOM
FILL MODES AVAILABLE.
- PRODUCT RECIPES AVAILABLE
FOR EASY SETUP.
|
|

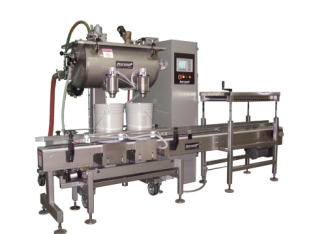

PG52-TG-A-R
Operator Friendly
Design
- Accurate, durable, easy, fast,
net weight filler
- Safe operation through solid design
- Easy Reach Controls
- Allen Bradley HMI and PLC
- Intrinsic and Non-Intrinsic design.
(Class1, Division 1, Group C&D
- Clean, “No Collect” design.
- Low Cost
Multiple Container
Capabilities
Six-Gallon |
One-Gallon |
Five-Gallon |
Quart
& Pints |
Configurable
to your container type |
Flexible Design
- 2 Head, Upgradeable to 4- or more
Heads
- Different Head Styles Available
- High-Speed Automatic lid Crimper
for 5 and 6 gallon metal lids
- Lid Placers available
- Roller Press for Quarts, Gallons,
and Plastic 5 gallon Pails and Lids
- Automated Statistics Reporting
Package available
|
Specifications
| Containers per
Minute |
14 to 16 cpm |
| Model Number |
PG52-TG-A-R |
| Controls Operating Voltage |
110 VAC |
| Pneumatic |
Min 80 PSI, Max 120 PSI |
| Supply line size |
3/4” |
| System Width |
132” |
| System Depth |
73.37"” |
| System Height |
77.62” |
|
Highlights
- ACCURATE NET WEIGHT FILLING.
- SIMPLE DESIGN
- INDIVIDUAL WEIGHT SCALES
FOR ACCURATE FILLING.
- EASY OPERATION AND CONTROLS.
|
- CLOSED TUBE FRAME DESIGN-NO
PRODUCT CATCH POINTS.
- TOPFILL, SUB-FILL, AND BOTTOM
FILL MODES AVAILABLE.
- PRODUCT RECIPES AVAILABLE
FOR EASY SETUP.
|
|
|
|
|
|
